Pile Driver Steel Edge

12', 14' and 16' Pusher Box Plow

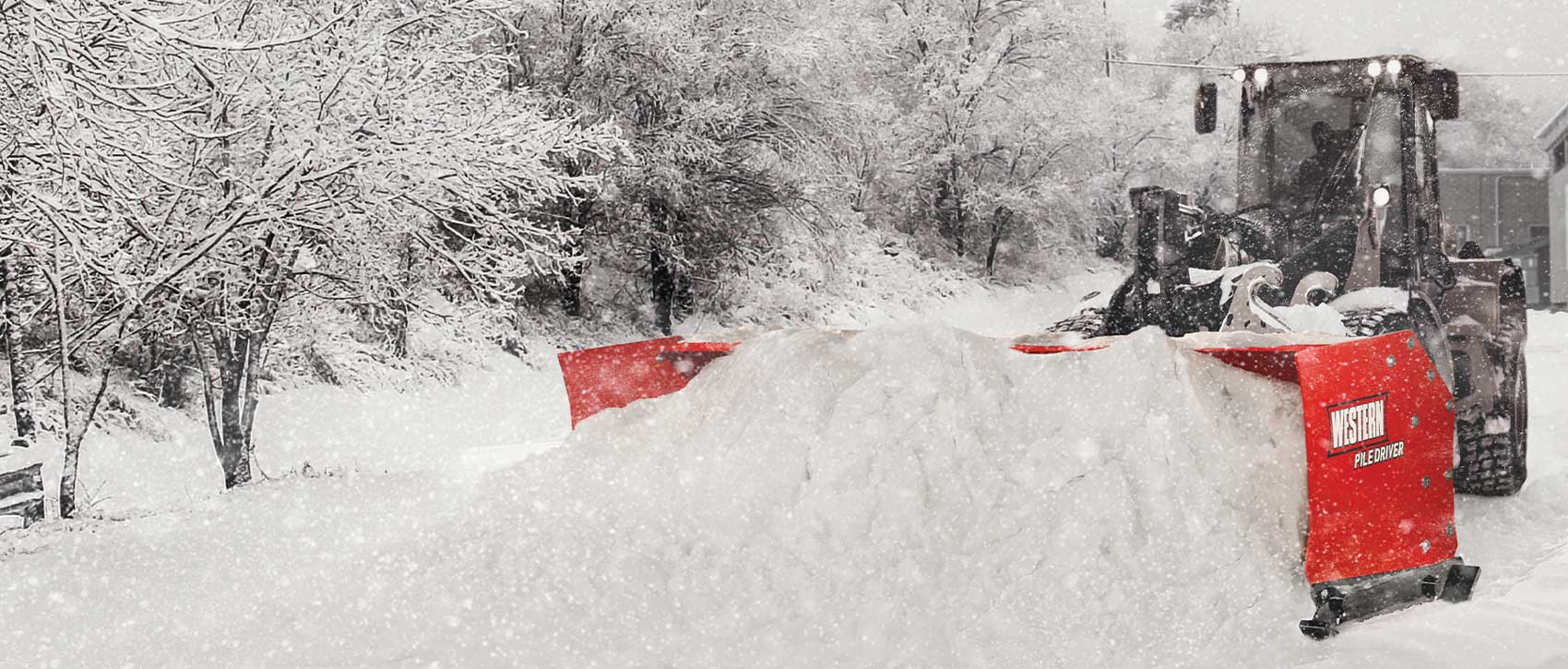

Western Plows pile driver steel pusher plow

The 12′, 14′, and 16′ Western Pile Driver pusher box plows add to the lineup of Western steel edge plows. The pushers quickly and easily attach to skid-steers, backhoes, wheel loaders and tractors with bolt-on, interchangeable attachment plates.

Unique Features

  • 12′, 14′ and 16′ pile driver steel edge pusher plows are equipped with an enhanced, heavy-duty blade design
  • 10-gauge moldboard and an aggressive, 67-degree attack angle to help scrape hard-packed snow and ice
  • Pusher plows measure 40.5″ tall and are finished with a high-gloss, industrial paint that is salt and UV resistant
  • Multiple structural-steel channels run across the length of the entire blade, internally lined with stiffener ribs for structural integrity and bucket-impact strength
  • Interchangeable, bolt-on attachment plates quickly and easily attach to various types of equipment
  • Floating attachment plates smooth out bumps and allow side-to-side movement
  • Floating shoes are designed to keep the cutting edge
  • Two-piece, steel trip-edge design provides a cleaner scrape for hard-packed snow while protecting your equipment from hidden obstacles

12′ Product Specs

  • Moldboard Options: steel
  • Blade Width: 12′
  • Blade Height: 40.5″
  • Capacity: 8.5 cu yd
  • Approx Weight: 2,128 lbs
  • Machine Application: wheel loader, backhoe, tractor
  • Steel Trip-Edge: standard
  • Cutting Edge: steel
  • Mount Type: interchangeable attachments
  • Horsepower Compatibility: 70+ hp

14′ Product Specs

  • Moldboard Options: steel
  • Blade Width: 14′
  • Blade Height: 40.5″
  • Capacity: 10 cu yd
  • Approx Weight: 2,275 lbs
  • Machine Application: wheel loader, backhoe, tractor
  • Steel Trip-Edge: standard
  • Cutting Edge: steel
  • Mount Type: interchangeable attachments
  • Horsepower Compatibility: 85+ hp

16′ Product Specs

  • Moldboard Options: steel
  • Blade Width: 16′
  • Blade Height: 40.5″
  • Capacity: 11.5 cu yd
  • Approx Weight: 2,512 lbs
  • Machine Application: wheel loader, backhoe, tractor
  • Steel Trip-Edge: standard
  • Cutting Edge: steel
  • Mount Type: interchangeable attachments
  • Horsepower Compatibility: 100+ hp
